Where Robotic Manipulation Meets Structured and Scalable Evaluation

Anonymous Submission

Video

Abstract

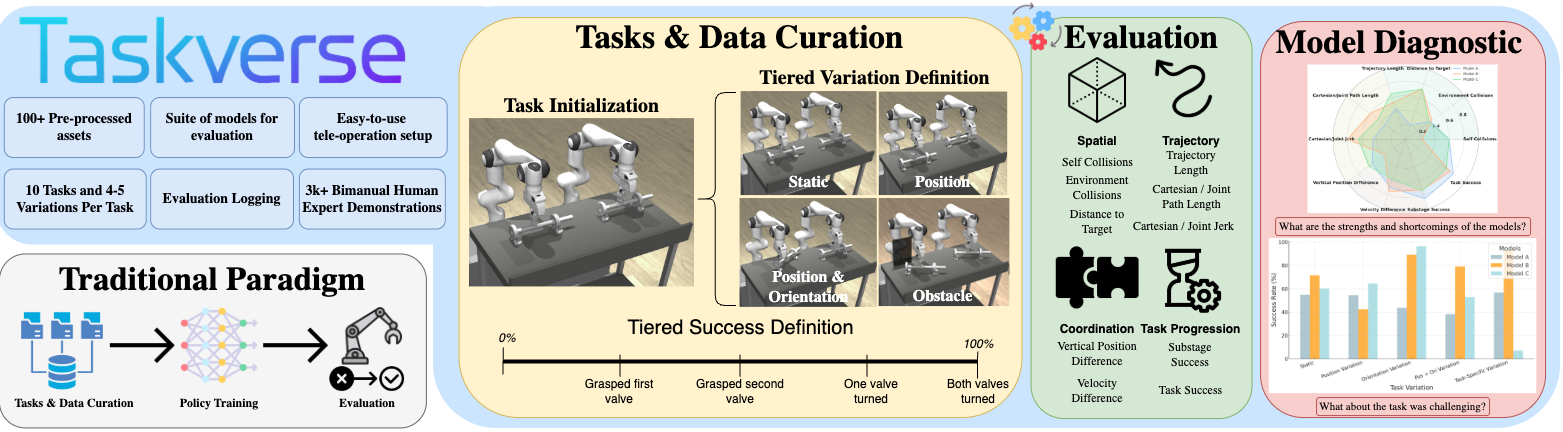

We present TASKVERSE, a simulation benchmark and structured evaluation framework for bimanual robotic manipulation. Unlike existing benchmarks that evaluate policies solely based on task success, TASKVERSE introduces an initial suite of tiered, semantically diverse manipulation tasks with fine-grained diagnostic metrics to probe the capabilities and failure modes of learning-based agents. The benchmark provides an initial set of tasks that target specific skills such as coordination, precision, and interaction under variability, and are decomposed into variations that focus on spatial and physical variability. Alongside sparse rewards, TASKVERSE includes high-quality human demonstrations to support data-driven learning. Our evaluation shows that aggregate success rates often conceal critical skill deficiencies, and that TASKVERSE enables nuanced, stagewise insights into policy behavior. By systematically characterizing when, where, and why policies fail, TASKVERSE provides a new foundation for developing and evaluating generalizable robotic agents.

Benchmark

Task Overview



Taskverse Benchmark

TASKVERSE is a benchmark for evaluating bimanual manipulation policies under diverse task settings. The first iteration consists of 10 base tasks and 3000+ human demonstrations. The tasks are derived from common tasks that humans perform in diverse settings, from service style tasks such as lifting a tray, to warehouse tasks like closing a box, to industrial tasks like rotating hand-wheels. Each task includes multiple variations—ranging from static setups to dynamic shifts in object pose and semantic context—designed to assess policy performance in a systematic manner. To facilitate research in imitation learning and demo-driven policy training, we provide a suite of raw expert human demonstrations, along with fine-grained evaluation metrics such as trajectory smoothness, environment collisions, etc.

Base Task Set in RobotArena

Task Name Variations # Demos Traj Len Skills Coordination Type
Bread in Toaster Static, Pos 151 98.229 grasp, lift, insert Loosely Coord.
Cube Handover Static, Pos, Rot, PR, Vertical 511 93.631 grasp, hold Loosely Coord.
Lift Pot Static, Pos, Rot, PR 390 58.561 grasp, lift Tight Sym.
Lift Tray Static, Pos, Rot, PR, Drag 730 77.318 grasp, lift Tight Sym.
Pack Box Static, Pos, Rot, PR 312 123.016 push Uncoord.
Pick Single Book From Table Static, Pos, Rot, PR 359 103.364 grasp, lift Loosely Coord.
Rotate Valve Static, Pos, Rot, PR 456 112.484 grasp, rotate along axis Uncoord.
Stack Single Book Shelf Static, Pos, PR 199 187.280 push, grasp, lift, place Loosely Coord.
Stack Two Block Static, Pos, Rot, PR 400 108.368 grasp, hold, place Loosely Coord.
Sweep Table Static 104 121.327 grasp, sweep Loosely Coord.

Evaluation Metrics

We evaluate policy performance across trajectory, precision, task progression, and bimanual coordination.

Trajectory-Based Metrics

  • Joint Path Length: Total angular joint distance during execution.
  • Cartesian Path Length: 3D distance traveled by end-effectors.
  • Jerk (Joint / Cartesian): Measures motion smoothness.
  • Collision Counts: Number of robot/environment collisions.

Spatial Precision Metrics

  • Final Distance to Target: Distance between final and goal object pose.
  • Orientation Error: Geodesic difference between object rotations.

Task Progression Metrics

  • Stage-wise Success: Binary success indicators for each sub-task.
  • Time in Each Stage: Timesteps spent per task stage.

Bimanual Coordination Metrics

  • Gripper Vertical Sync: Height difference between two arms.
  • EE Velocity Difference: Measures arm coordination.
  • Slip Count: Tracks unintended object drops.

Simulation Results

Task rollouts

Task
with variation
and method
episode


Performance on Bimanual Tasks with Variations

Method Overall Metrics Lift Tray Stack Two Cubes
Success Rank SPL Static Pos Ori P+O T Static Pos Ori P+O
ACT 0.35 1.28 0.27 1.00 0.52 0.45 0.82 1.00 0.16 0.09 0.02 0.11
BC 0.09 2.95 0.06 0.56 0.35 0.34 0.31 0.00 0.00 0.03 0.00 0.00
DP 0.19 2.36 0.15 0.68 0.04 0.43 0.37 0.15 0.00 0.00 0.00 0.01
OpenVLA 0.16 2.27 0.08 1.00 0.20 0.54 0.32 0.00 0.00 0.04 0.02 0.04
Method Stack Single Book Shelf Rod Handover Lift Pot
Static Pos P+O Static Pos Ori P+O P+O+T Static Pos Ori P+O
ACT 0.00 0.00 0.03 0.63 0.82 0.51 0.32 0.46 1.00 0.53 0.73 0.22
BC 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.04 0.04 0.05 0.05 0.00
DP 0.00 0.00 0.00 0.64 0.00 0.11 0.00 0.00 0.91 0.00 0.77 0.21
OpenVLA 0.00 0.00 0.00 1.00 0.08 0.06 0.00 0.14 0.98 0.06 0.08 0.04
Method Pack Box Pick Book from Table Rotate Valve
Static Pos Ori P+O Static Pos Ori P+O Static Pos P+O T
ACT 0.33 0.82 0.11 0.37 0.00 0.13 0.20 0.18 1.00 0.12 0.09 0.03
BC 0.00 0.51 0.00 0.10 0.00 0.00 0.00 0.00 0.89 0.00 0.00 0.01
DP 0.16 0.73 0.23 0.32 0.17 0.00 0.15 0.01 1.00 0.00 0.00 0.01
OpenVLA 0.00 0.10 0.06 0.06 0.00 0.00 0.00 0.02 1.00 0.02 0.00 0.02

Real-world experiments

To validate the trends observed in our simulation benchmarks, we conducted real-world experiments on three tasks—Lift Tray, Stack Two Cubes, and Rod Handover – using a bimanual Franka Panda robot setup. These tasks closely mirror their simulated counterparts and include multiple task variations. For each task, we collected 100 demonstrations under the static variation using a VR Oculus controller, and fine-tuned OpenVLA until training accuracy plateaued. We then evaluated each task variation over 25 trials. The results, shown in Figure 4, demonstrate a strong correlation between the real-world task performance of OpenVLA and the trends observed in simulation, with performance decreasing as task complexity increased due to variations

Failure Analysis & Metric Summary

This section provides a visual summary of performance degradation using radial metrics plots and failure mode heatmaps. These visualizations allow fine-grained interpretation of agent performance under different task variations.


Radial Graph

Radial Metrics Plot

Failure Summary Plot

Failure Summary Plot

Interactive demo (WIP)

Lift tray
